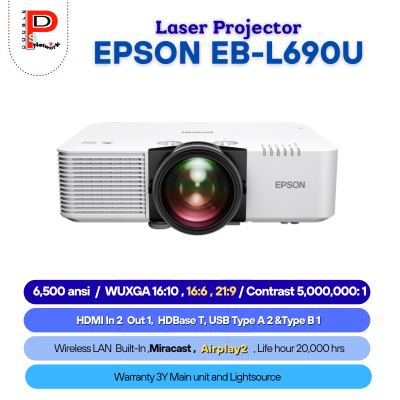

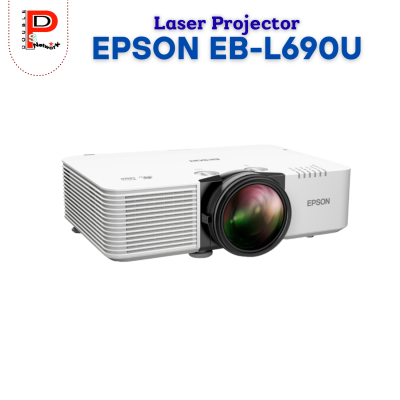

EPSON EB-L690U Laser Projector

Laser Projector EPSON EB-L690U

 The Epson EB-L690U adds incredible brightness and pro features to the compact and versatile Epson business projector family. Featuring an impressive 6,500 lumens of color and white brightness1, it is ideal for classrooms and lecture halls, conference rooms, hybrid workspaces and more. This powerful projector produces exceptionally vibrant, high-resolution images up to 500'' in 16:10, plus is capable of projecting in a variety of other aspect ratios, including ultra wide 16:6 and 21:9.

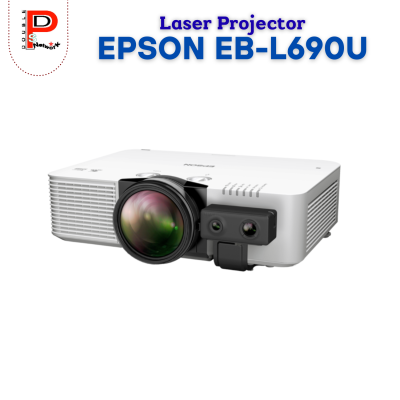

Designed with convenience in mind, the EB-L690U features an up to 30,000-hour virtually maintenance-free laser light source2 and air filter in Extended Mode. And for simple, seamless installation, this versatile solution offers a variety of powerful features, such as optical zoom, wide lens shift, geometric correction tools and more. With built-in wireless communication, you can monitor and control your fleet remotely from a web browser using the Epson Projector Management Connected app, as well as enable advanced screen casting tools like Epson iProjection and Miracast. In addition, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.

- 6,500 lumens color/white brightness
- WUXGA resolution for clear, detailed images
- Display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9
- Lightweight, compact design allows for easy installation
- Up to 30,000-hour laser light source2 and air filter
- AirPlay 2 supported

 Specifications :

LCD Size  : 0.67 (C2 Fine)

Lightsource :  Laser Diode

Native Resolution :  WUXGA

Aspect Ratio : 16 : 10

Brightness : White&Color Light Output (Normal/Eco) : 6,500 lm / 4,550 lm

Light Source Life (Normal / Extended) : 20,000 / 30,000 hrs

Contrast Ratio : 5,000,000 : 1

Projection Lens :Type : Optical Zoom (Manual) / Focus (Manual)

Projection Technology : RGB liquid crystal shutter projection system (3LCD)

Connectivity :   Network : Wireless LAN Built-In  : Wi-Fi Direct Built-In , Screen Mirroring, Miracast

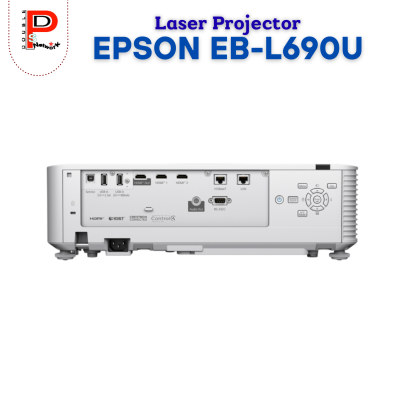

Input :

Digital Input :HDMI : 2 (HDCP 2.3) , HDbaseT : 1 (HDCP2.3)

Digital Output : HDMI Out: 1 (HDCP2.3, supports only HDMI1 input)

Audio Output :Stereo Mini Jack: 1

Control I/O :RS-232C : D-Sub 9pin x 1

Others : USB Type A: 2 (For PC Free, FW Update, Copy OSD Settings )
USB Type B: 1 (For Firmware update)

Network I/O : Wired LAN: RJ45 x 1 (100Mbps)
Wireless: Built-in

Screen Size :  50-500 นิ้ว

Geometric Correction : Vertical/Horizontal Keystone:±30° / ±30° ปรับสี่เหลี่ยมคางหมูแนวตั้งอัตโนมัติ , Quick Corner

Projection 360 degree free

Edge blending

Start-Up Period : Less than 8 seconds (Epson Logo); Warm-up Period: 30 seconds

Cool Down Period : Instant Off

Internal Speaker(s) : Monaural 10W x 1

Weight : Approx. 8.2 kg

Air Filter : Maintenance Cycle : 20,000 hours (Normal) / 30,000 hours (Eco)

Fan Noise (Normal / Eco) : 31dB / 23dB

Direct Power On / Off : Yes

Dimension Excluding Feet (W x D x H) : 304 x 440 x 122 mm

Power Supply Voltage : 100 - 240 V AC ±10%, 50/60 Hz
