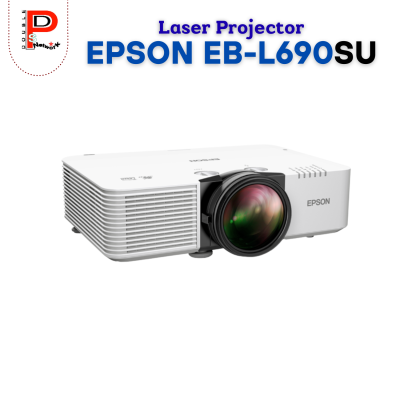

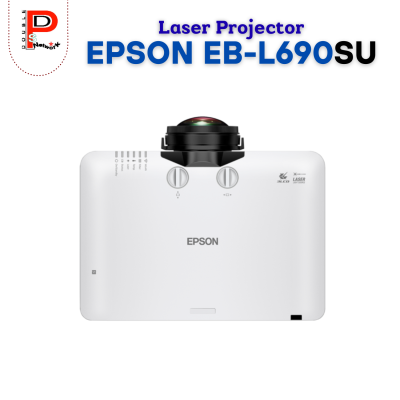

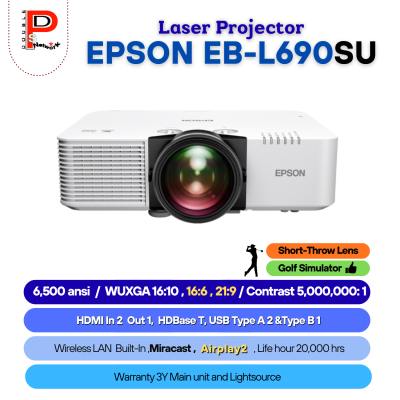

EPSON EB-L690SU Short Throw Laser Projector

เตรียมพร้อมสู่ความมหัศจรรย์


Experience the extraordinary versatility and performance of our bright and compact L-Series. Expanding on the possibilities of this powerful projector lineup, the EB-L690SU features an expansive 0.79 1.36 throw ratio and a large display up to 400".With wide vertical and horizontal lens shifts and 1.7x optical zoom, the projector is ideal for a wide variety of applications, such as conference rooms, hybrid workspaces, golf simulation, museum exhibitions and more. Deliver bright images in rooms with high-ambient light with 6,200 lumens of equal color and white brightness1 and WUXGA resolution.

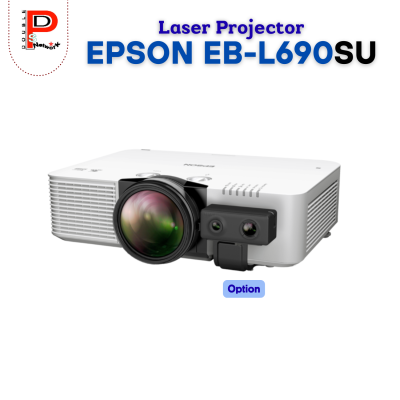

Simple to install, the EB-L690SU is easy to operate from start to finish. Built-in NFC functionality4, wide lens shift, 360-degree mounting, geometric correction tools and more allow for simple, seamless integration. Created with convenience in mind, the projector features an up to 30,000-hour virtually maintenance-free laser light source2 and air filter in Extended Mode. Plus, its built for modern connectivity with fast wireless functionality for screen casting and PC-less remote management and control via the Epson Projector Management Connected app. In addition, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.

 - 6,200 lumens color/white brightness
 - WUXGA for clear, detailed images
 - 0.79 to 1.36 throw ratio and 1.7x optical zoom
 - Display up to 400" diagonal in 16:10, plus ultra wide 16:6 and 21:9
 - Lightweight, compact design allows for easy installation
 - AirPlay 2 supported

 Specifications :

LCD Size  : 0.67 (C2 Fine)

Lightsource :  Laser Diode

Native Resolution :  WUXGA

Aspect Ratio : 16 : 10

Brightness : White&Color Light Output (Normal/Eco) : 6,200 lm / 4,550 lm

Light Source Life (Normal / Extended) : 20,000 / 30,000 hrs

Contrast Ratio : 5,000,000 : 1

Projection Lens :Type : Optical Zoom (Manual) / Focus (Manual)

Projection Technology : RGB liquid crystal shutter projection system (3LCD)

Connectivity :   Network : Wireless LAN Built-In  : Wi-Fi Direct Built-In , Screen Mirroring, Miracast

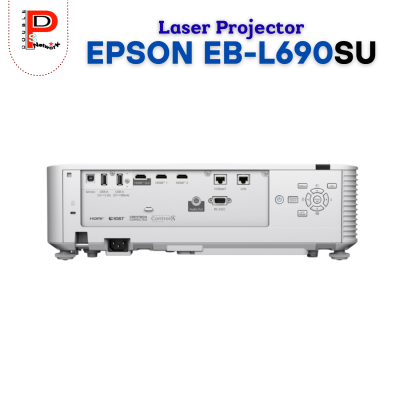

Input :

Digital Input :HDMI : 2 (HDCP 2.3) , HDbaseT : 1 (HDCP2.3)

Digital Output : HDMI Out: 1 (HDCP2.3, supports only HDMI1 input)

Audio Output :Stereo Mini Jack: 1

Control I/O :RS-232C : D-Sub 9pin x 1

Others : USB Type A: 2 (For PC Free, FW Update, Copy OSD Settings )
USB Type B: 1 (For Firmware update)

Network I/O : Wired LAN: RJ45 x 1 (100Mbps)
Wireless: Built-in

Screen Size :  60-400 นิ้ว

Geometric Correction : Vertical/Horizontal Keystone:±30° / ±30° ปรับสี่เหลี่ยมคางหมูแนวตั้งอัตโนมัติ , Quick Corner

Projection 360 degree free

Edge blending

Start-Up Period : Less than 8 seconds (Epson Logo); Warm-up Period: 30 seconds

Cool Down Period : Instant Off

Internal Speaker(s) : Monaural 10W x 1

Weight : Approx. 8.9 kg

Air Filter : Maintenance Cycle : 20,000 hours (Normal) / 30,000 hours (Eco)

Fan Noise (Normal / Eco) : 34dB / 25dB

Direct Power On / Off : Yes

Dimension Excluding Feet (W x D x H) : 304 x 440 x 122 mm

Power Supply Voltage : 100 - 240 V AC ±10%, 50/60 Hz
