TOA : PJ-200W

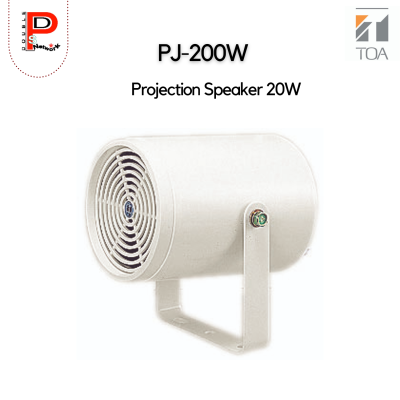

PJ-200W Projection Speaker

The PJ-200W Projection Speaker is designed for indoor use. The built-in terminal board provides an easy cable connection and allows bridge wiring. Its wide frequency range makes it suitable for use in both paging and BGM applications.

Rated Input    : 20 W (50 V, 70 V, 100 V Line)
Input Impedance
                   : 100 V Line : 500 Ω (20 W), 1 kΩ (10 W), 2 kΩ (5 W)
                   : 70 V Line : 250 Ω (20 W), 500 Ω (10 W), 1 kΩ (2.5W)
                   : 50 V Line : 125 Ω (20 W), 250 Ω (10 W), 500 Ω (2.5 W), 1 kΩ (1.25 W)
Preset Impedance     : 500 Ω
Sound Pressure Level     : 95 dB (1 m, 1 W) at 1 kHz
Speaker Component     : 16 cm
Frequency Response     : 50 Hz - 20 kHz
Finish     : Cabinet, Cover: ABS Resin, off-white
            : Bracket: SPCC, off-white
Dimensions     : 200 (W) × 255 (H) × 250 (D) mm (7.87" × 10.04" × 9.84")
Weight     : 2.5 kg (5.51 lb)
